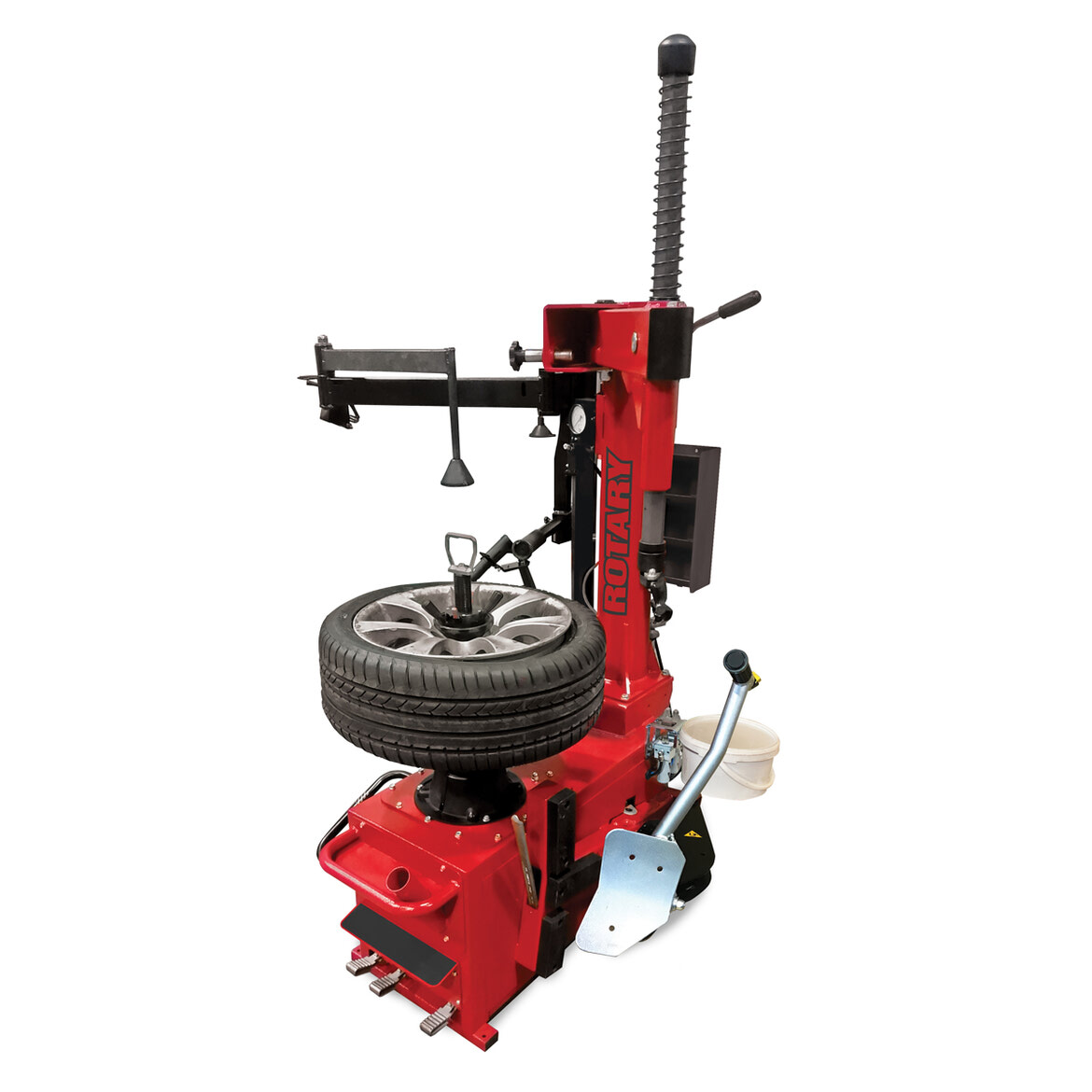

Rotary R247D Center Post Swing arm Tire Changer
High volume design and productivity features make this the go-to pro performance swing arm tire changer for the busiest tire centers. Easy to use center post mounting increases productivity and reduces the risk of wheel damage.
DOWNLOAD ROTARY TIRE CHANGERS BROCHURE
- Quick Locking Wheel Centering Adapter
- Side Mounted Bead Breaker
- Integrated Wheel Lift
- Storage cabinet standard
- Variable Speed Control Inverter
- Lower Bead Lifting Roller
- Pneumatic Top Bead Pressing Tool
- 220v Drive Motor Provides Needed Torque
Specifications
| Technical Data | R247D |
| Rim clamping | 10″ – 30″ |
| Maximum rim width | 15″ |
| Maximum tire diameter | 47″ |
| Max. bead breaker opening | 15″ |
| Bead breaker cylinder power at 145psi | 6,745 LBS |
| Rotation motor | 2Hp / 1,5 Kw invemotor |
| Recommended air supply | 115-145 PSI / 8-10 bar |
| Power supply* | 220v / 1Ø / 60 Hz | VARIABLE SPEED |
