ESC10100

Use on 5-piece rims 25" to 51" with pry bar/bead loosing pockets. Ram will break the toughest of beads. Use with 10,000 PSI Hydraulic Pump.

Weight: 31lbs

ESC10101

Works on single, two and three-piece truck tires/rims. Breaks beads in seconds using 13.8 tons of force. "Combi" Bead Breaker will not work on five-piece Earthmover giant wheel/rim, Model #10100 or Model #10105 is required.

Weight: 36lbs

ESC10102

Works on ALL 3-piece wheels with extended flange that have replaced the older 5-piece wheels. Designed to work on front or back of the wheel with no attachments or accessories. Longer feet and claw than the "Combi" Bead Breaker Model 10101

Weight: 38lb

ESC10103

Use on 5 piece rims 39", 45", 51", 57", and 63" wheel sizes. In some cases you must first use [Model #10105] or the [Model #10100] bead breaker to start the movement of the rim flange; the [Model #10103] can then be used.

Weight: 54 lbs

ESC10105

Smaller, more compact design fits on the backside of most wheels. Use only on 5-piece rims 25" and 29" Earthmover tire/wheel with pry bar/bead loosening pocket. 2" Stroke.

Weight: 24 lbs

ESC10106

10 Tons of Bead Breaking force that breaks the inner bead on dual farm tractor tires. Requires just 3" of operating space between the dual tractor tires. No need to remove the outside wheel to change the tire on the outside dual.
Weight: 54 lbs

ESC10107

Lightweight aluminum bead breaker reduces weight of the tool by approx. 20+%. Works on all single piece, 2-piece, and 3-piece tires & rims. 13.8 tons of bead breaking force.

Weight: 32 lbs

ESC70160

Newly Improved Bead Hook -- Reinforced with Steel Brackets to Create better leverage on rim & add dexterity.
Loosens tire bead from the rim with leverage. Excellent for working on the tire without removing the wheel.

Weight: 12 lbs

ESC10108

Lightweight tool for removing combine, forestry, and tractor tires after breaking the bead. Acts as a "Third Hand" and has a pushing force of 8,000 lbs. and a 5.5" stroke. The push off tool hooks between the rim and the tire bead.

Weight: 9 lbs

ESC10109

OTR Bead Breaker for heavy duty 3-piece rims with extended flange that have replaced standard 5-piece rims. Works on both front and back of wheel without dismounting wheel from vehicle.

Weight: 30 lbs

ESC40800

Stroke: 1.5" | 38 mm
Weight: 11 lbs. | 4.8 kg

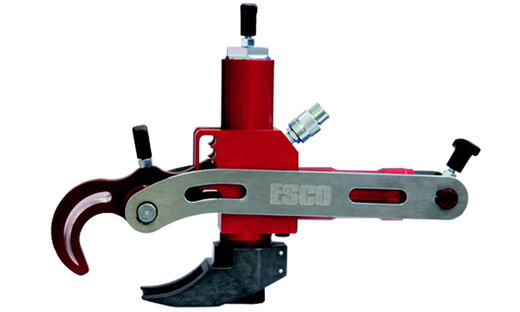

ESC40805

Lightweight aluminum construction. 5 tons of bead breaking force. 5 tons of bead breaking force. To be used on 3-piece wheel assemblies.

Weight: 39 lbs
Stroke: 4.75"

10615

Kit increases opening on Combi Style Bead Breakers. Will fit models from IMT, FEC, Stellar and Esco. Can be added to tool in minutes-easy to apply.

ESC10620

Converts Combi Bead Breaker (Model 10101) to Maxi Bead Breaker (Model 10102)

Kit includes longer feet and claw for deep dished style wheels.

Weight: 10 lbs

17200

Convert your existing aluminum bead breaker. Upgrade kit will push on bead of the tire - NOT the sidewall.
