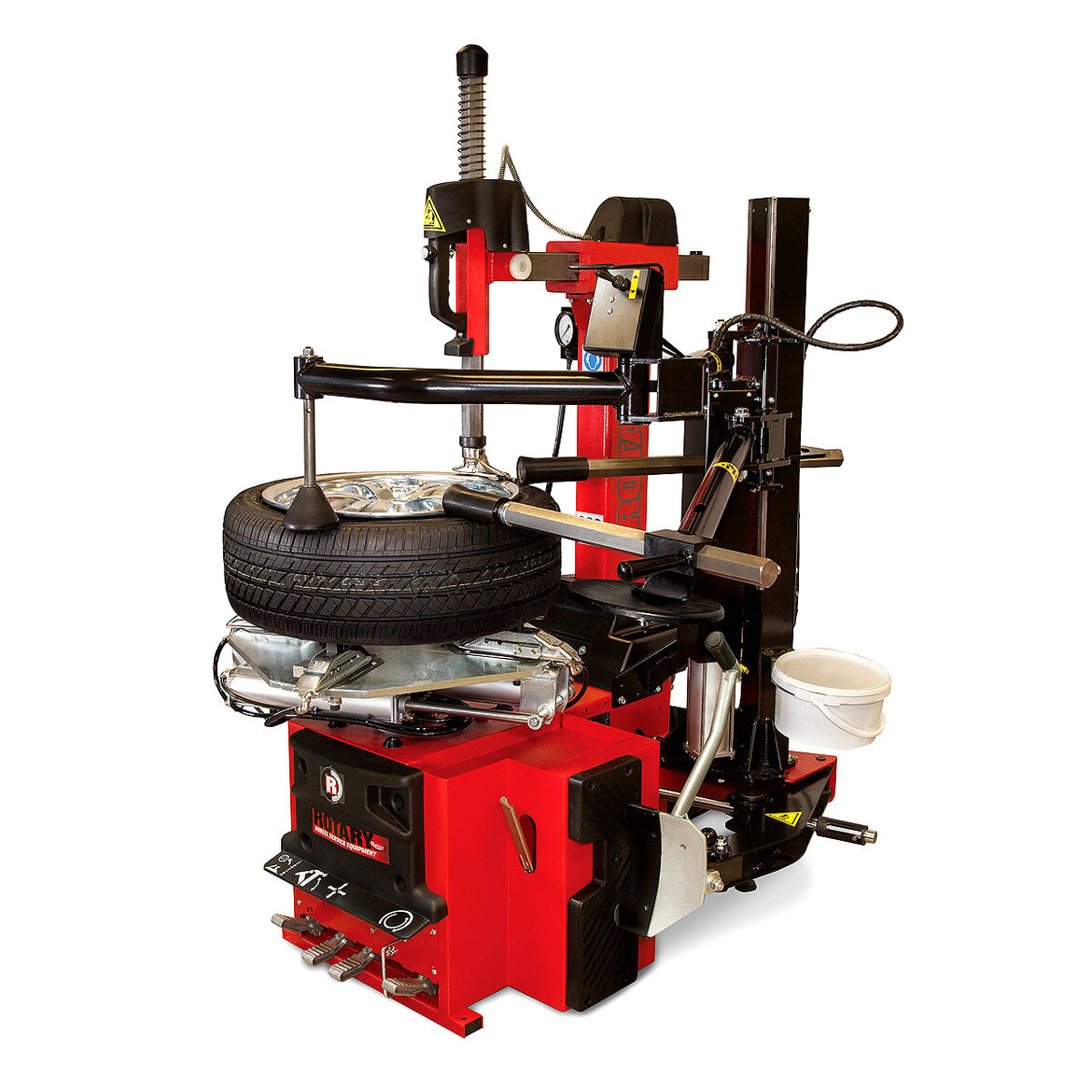

Rotary R145DR Tilt Back Variable Speed Rim Clamp Changer
The R145DR is an automatic tire changer with an innovative electric motor inverter, which gives the ability to regulate the chucking table rotation speed to reduce the stress on the bead to avoid any damage to the tire.
DOWNLOAD ROTARY TIRE CHANGER BROCHURE
- Automatic Tire Changer
- FI Configuration (quick inflation for tubeless tires)
- 220V power-driven motor
- Invemotor 0-16 Variable Speed Control
- Designed for Large and Wide Tires
- Shown with standard helper included
- Hand operated bead breaker handle
Specifications
|
Technical Data |
R145D |
|
Motor |
180/260V (60Hz) / 1ph 0,75kW |
|
Maximum torque to chuck |
885 Ft/L bs (1200 Nm) |
|
Self-centring lock: external |
10”- 26” |
|
Self-centring lock: internal |
12”- 28,5” |
|
Tool working span |
8”- 32” |
|
Maximum tire diameter |
45” (1143mm) |
|
Maximum tire width |
17” (431mm) |
|
Bead breaker cylinder power at 145 psi |
6,745 lbs/force |
|
Power supply Motor |
220v / 1Ø / 60 Hz 1 Hp |
